POWERSYS is now offering the best combination of software for Power Electronics simulation.

Zoom on the PSIM-JMAG-SABER Combination

Zoom on the PSIM-JMAG-SABER Combination

With PSIM you have access to an environment for power electronics (power conversion) and motor control including simulator which delivers unbeatable simulation speed while producing high quality system-level results.

In addition to that SABER will offer advanced analysis such as optimization of systems for performance, reliability, and cost using Robust Design methods, and Safety analysis.

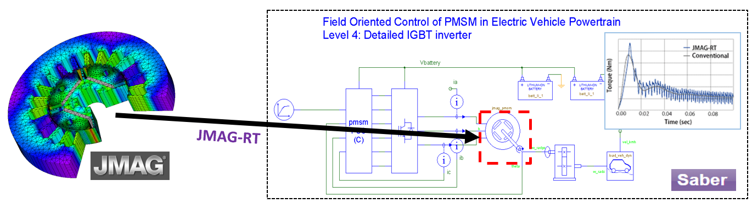

Field Oriented Control of PMSM is Electric Vehicle Powertrain

> More information about Saber

> More information about PSIM

> More information about JMAG

Saber feature Highlight : Robust Design

SABER’s Robust Design capability helps to improve design performance by incorporating manufacturing tolerance and variable operating conditions to a model. This makes the system immune to things like variations in design technologies, component parameters, manufacturing processes, etc. To achieve this, SABER offers streamlined design flows for:

  • Performance sensitivity to component variation.
  • Monte Carlo and Pareto analyses for verifying uncorrelated manufacturing drift.
  • Worse Case Analysis to identify critical operating points and perform multi-objective optimization.

Stress Analysis to confirm operating ranges and component choices.

>> More information about Saber Robust Design
